3M Ceramic Fibres & Textilesfor Fuel Cells
High performance when demand is hot
Design for reliability with high temperature ceramic textiles for SOFC and SOEC applications.
-
3M™ Nextel™ Ceramic Fibers and Textiles for Fuel Cells
Fuel cell based power generators, such as those using solid oxide fuel cells (SOFCs), operate at very high temperatures – up to 1000°C. To perform under these demanding conditions, fuel cell components need to be extremely durable. Engineered for use in high temperature textiles and composite reinforcement, Nextel Ceramic Fibers and Textiles offer excellent creep resistance and long service life at very high operating temperatures. These high-strength, high-purity ceramic materials can stand up to the extreme thermal cycling of start-up and cool-down periods.
Resilient and reliable, Nextel fibers and textiles help protect stack integrity, extend cell life – and keep power cells operating when demand is hot. View the 3M™ Nextel™ Ceramic Fibers and Textiles Technical Reference Guide (PDF, 3.8 MB) for more information on Nextel products.
- Heat resistant
- Corrosion resistant
- Electrically non-conductive
- 99% alumina fiber or alumina-mullite fiber for high creep resistance
- Helps prevent leakage between fuel and oxygen zones
- Helps prevent metal creep and glass seal failure due to thermal stress
-

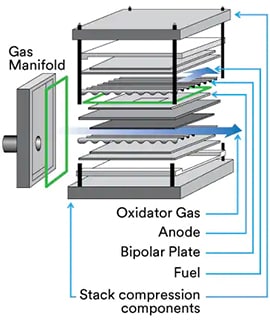

Stack compressionUnlike metals, which are conductive and can creep at high temperatures, ceramic matrix composites (CMC) reinforced with Nextel fibers offer electrically insulative high strength and low creep, helping maintain cell integrity.
-
Seals and gasketsCell-to-manifold seals need to be gas-tight across extremes in temperature. High temperature Nextel fabrics and sleeving provide flexible, conformable and compressible gaskets and seals that can help mitigate thermal stress in these hot and corrosive applications.
-
Electrical insulationThe critical interconnect wires in fuel cells are subject to extremely high temperatures. With high electrical resistance at elevated temperatures, Nextel braided sleeving insulates and protects interconnect wires and thermocouples.
-
Featured Product: 3M™ Nextel™ Fabric EF-20
High denier, semi unidirectional fabric that is ideal for making creep and corrosion resistant ceramic matrix composites and is our lost cost per pound 720 fiber fabric.
